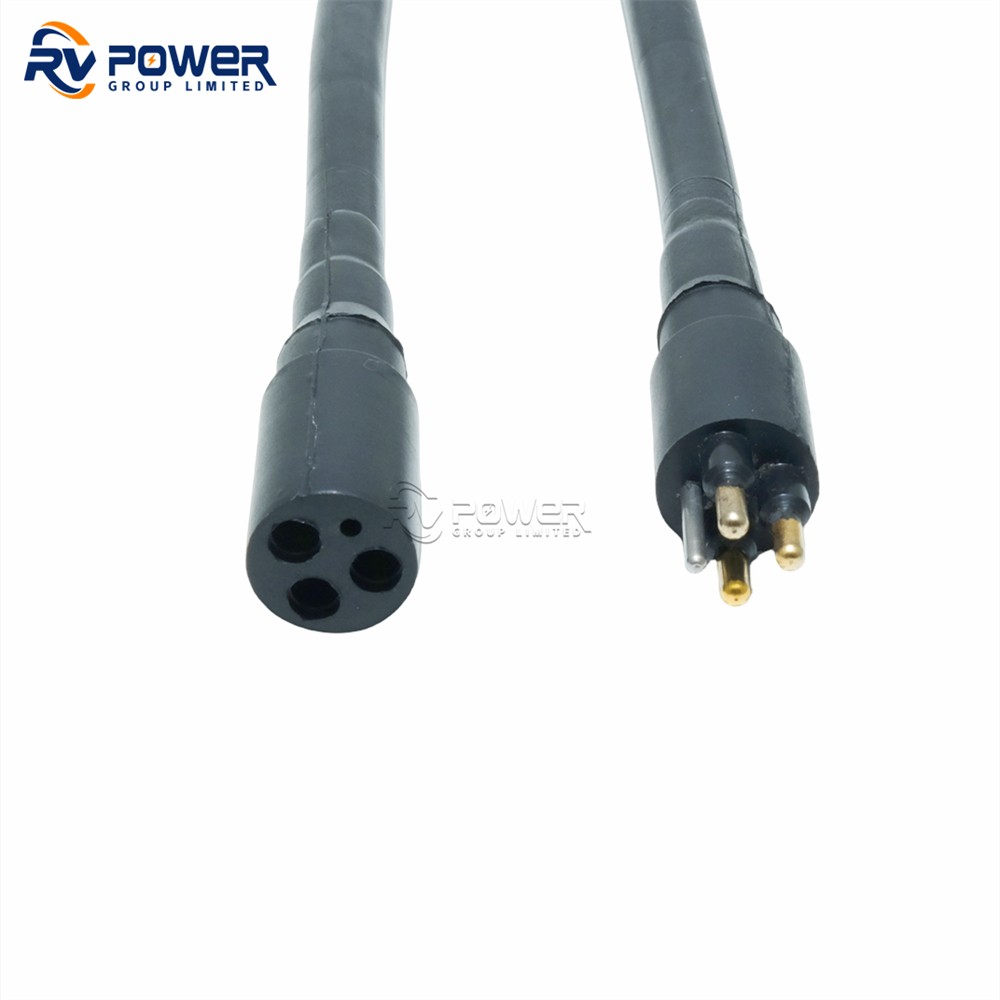

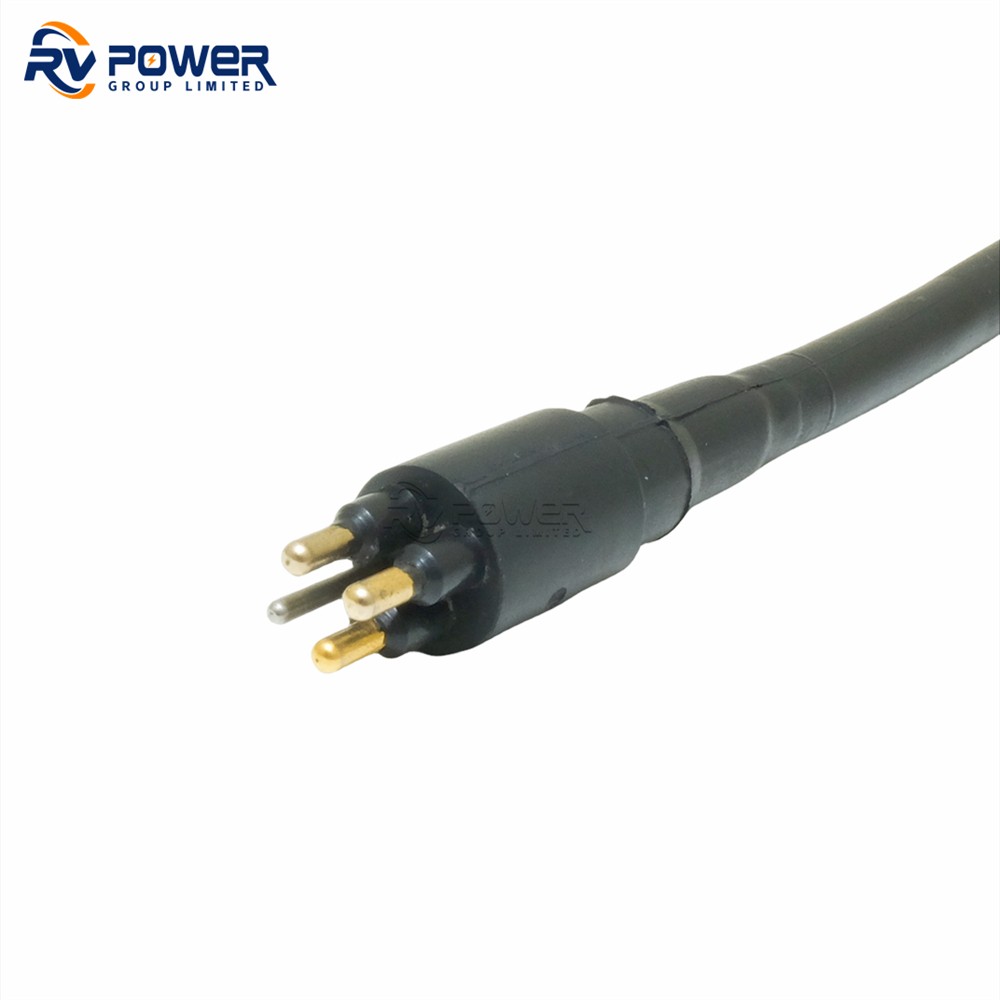

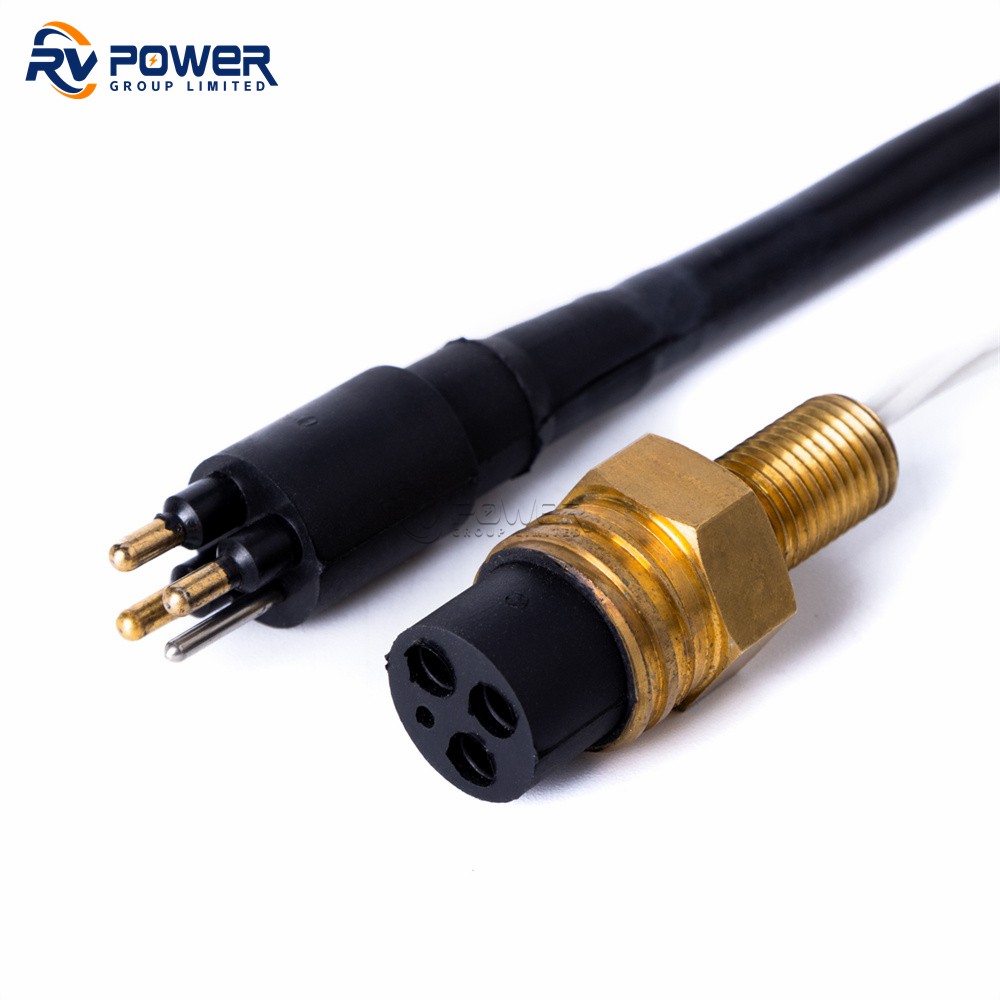

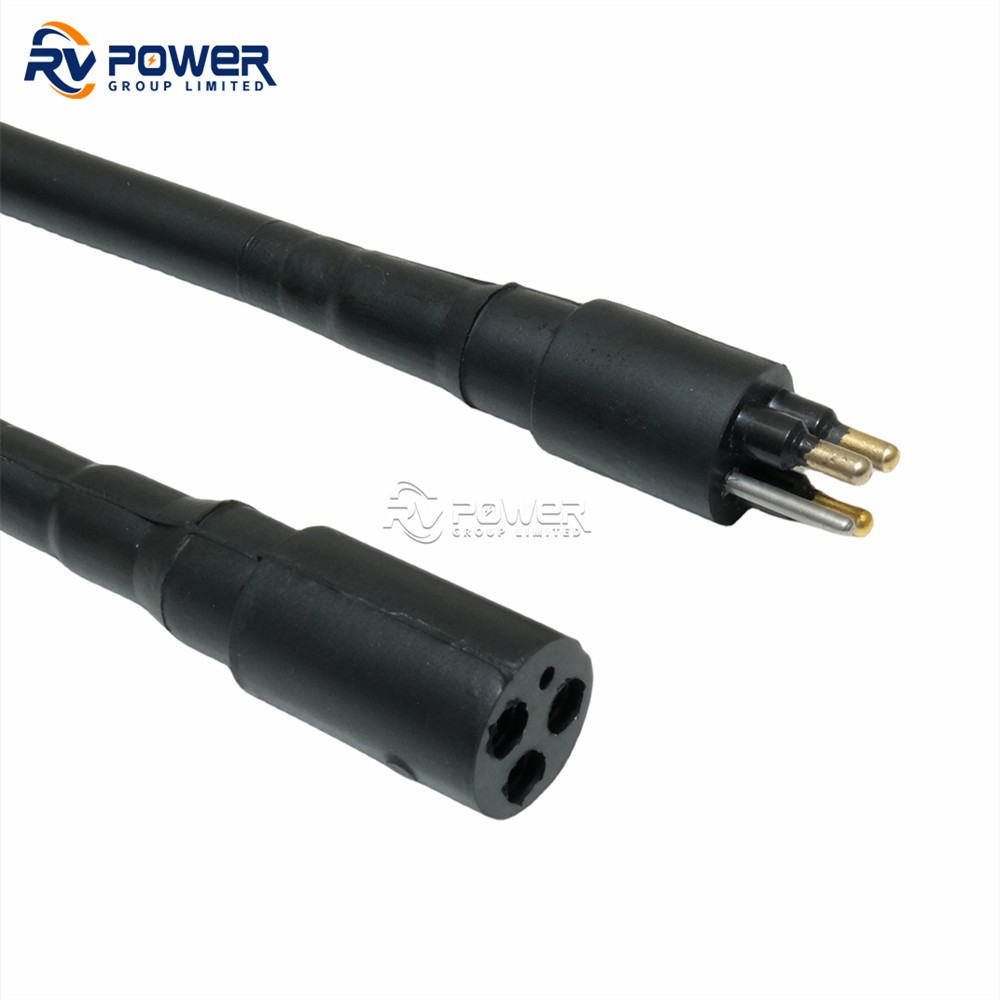

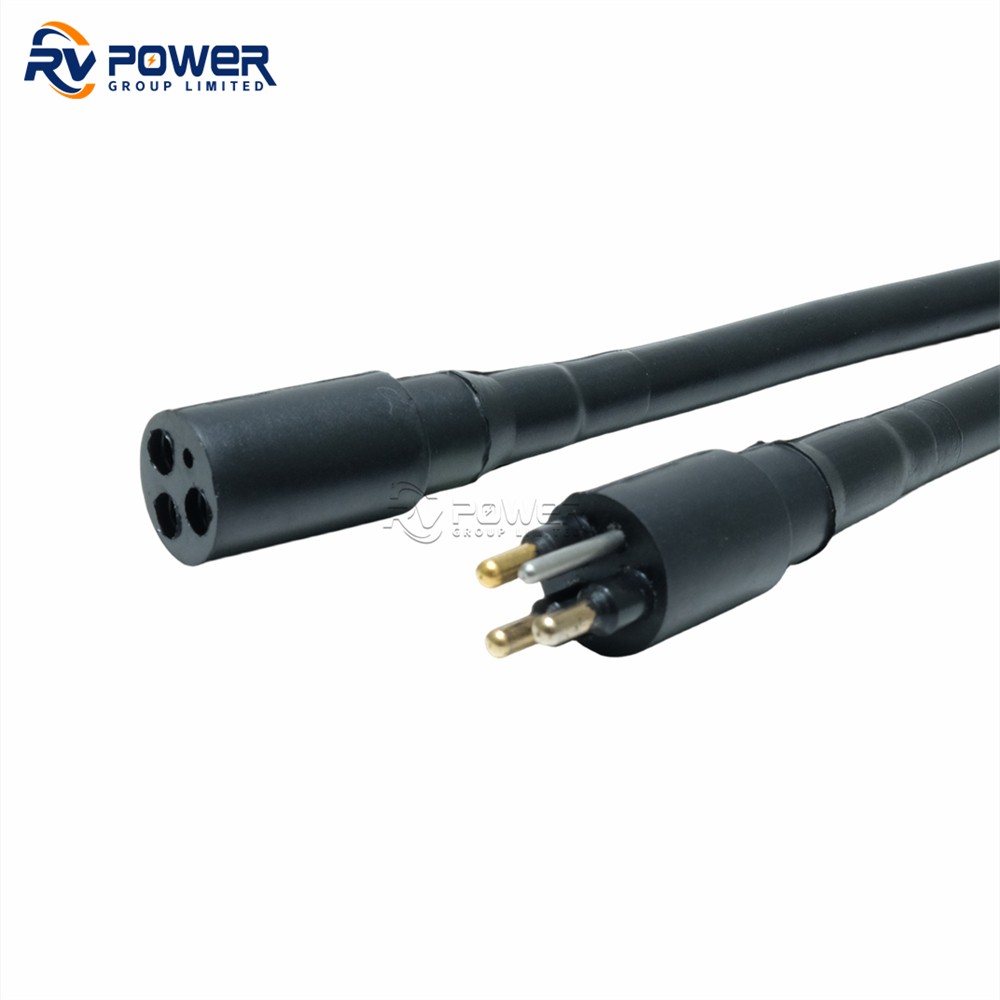

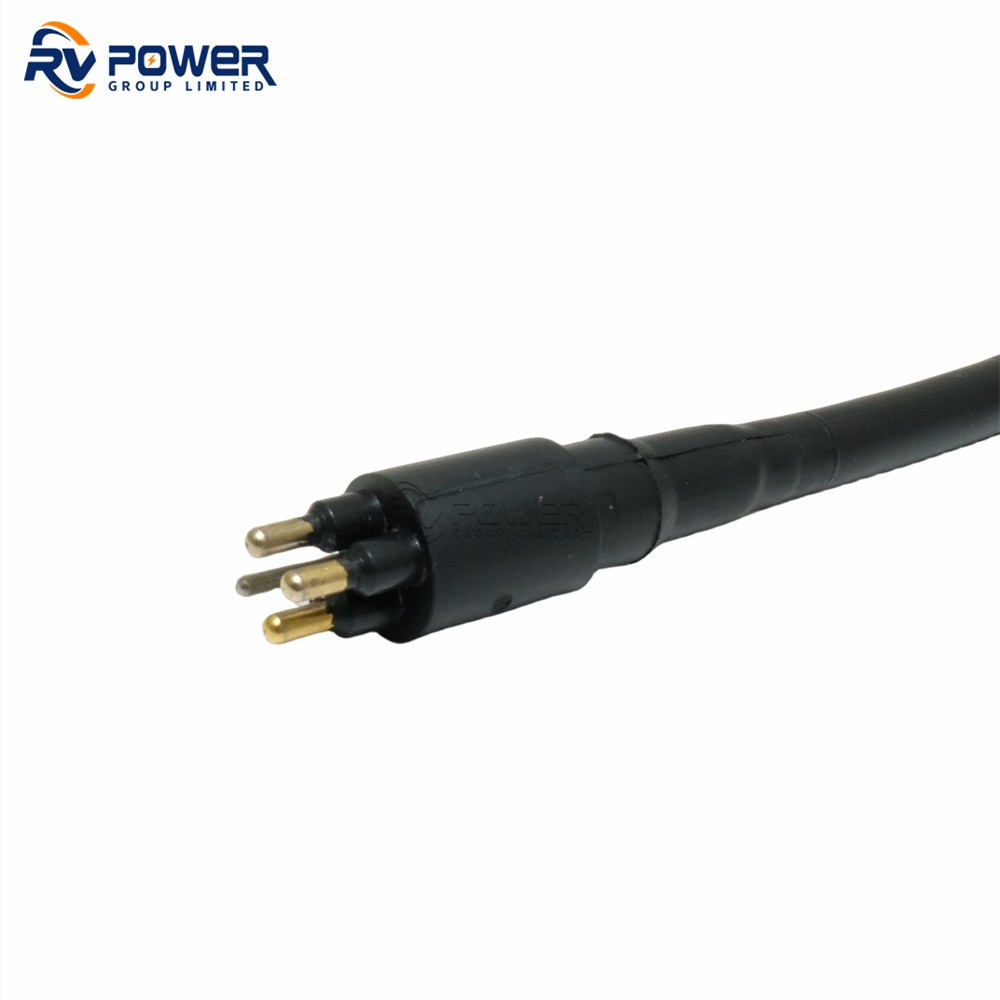

Micro Wet-Tech Connector, In-Line, 3-way, male, 1 ft. long Cable MCIL3M

Specifications: Molded Body: Neoprene Contacts: Brass-Gold Plated Guide Pins: Stainless Steel In-Line Cable: 3 Pin: Neoprene #18 AWG (SO Cable) In-Line Cable Length: 3.28 ft (1 m) Open Face Pressure: 10,000 PSI (Approx. 689 Bar) Optional And Needs To Be Specified Dummy Cap Recommended Above 100 PSI Mated Pressure: 10,000 PSI (Approx. 689 Bar) Voltage Rating 3 Pin: 600 VDC Current Rating: 6 Amps Per Contact Insulation Resistance: >200 Megohms @ 300 VDC Contact Resistance: <0.01 Ohms Air Mate: >1,000 Cycles Underwater Mate: >500 Operating Temperature: 25° To 140°F (-4° To 60°C) Mates with: MCIL3F and MCBH3F Dummy Connector Mate: MCDC3F Connector Pin: 3
Send Inquiry
Description





Hot Tags:Micro Wet-Tech Connector, In-Line, 3-way, male, 1 ft. long Cable MCIL3M - Micro Circular Series.Wet-Pluggable Capability,High Pressure Rating,Space-Efficient Design,Robust Material Construction - Professional Subsea & Underwater Connector Manufacturer | Reliable Submersible Interconnection Solutions
