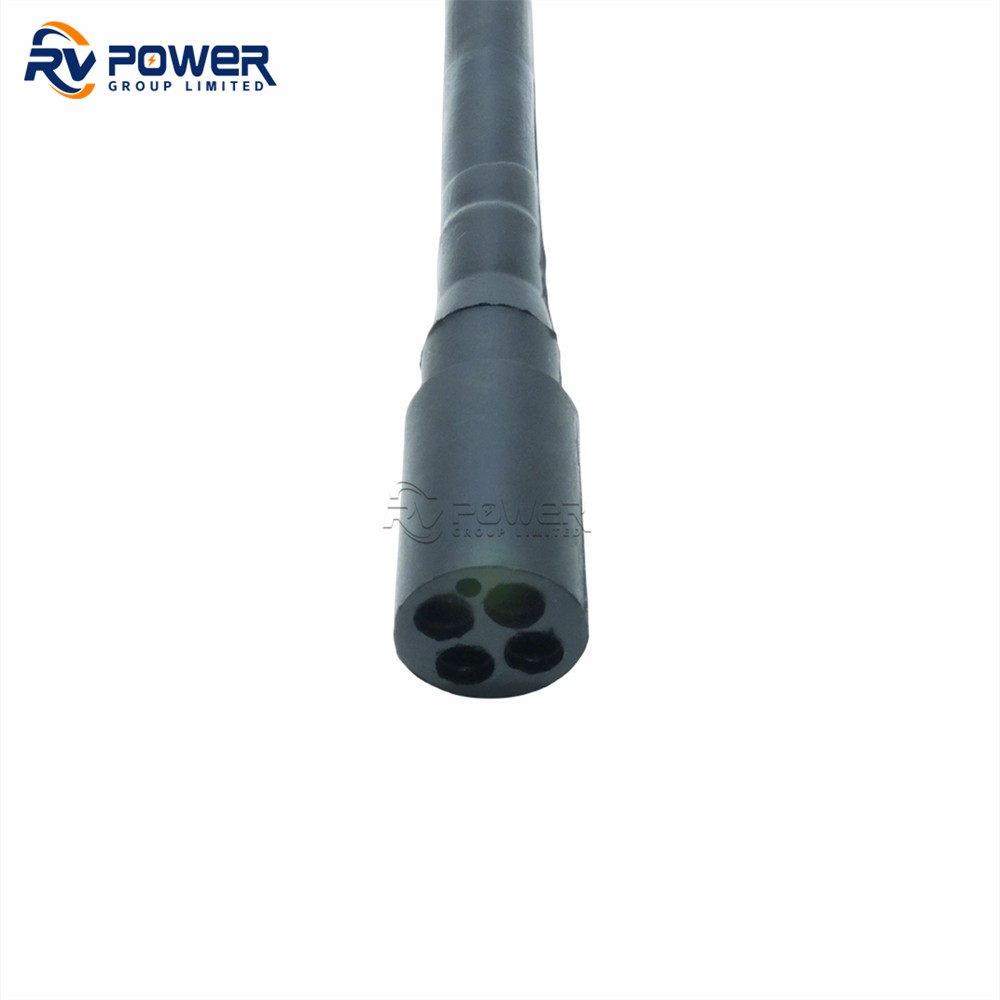

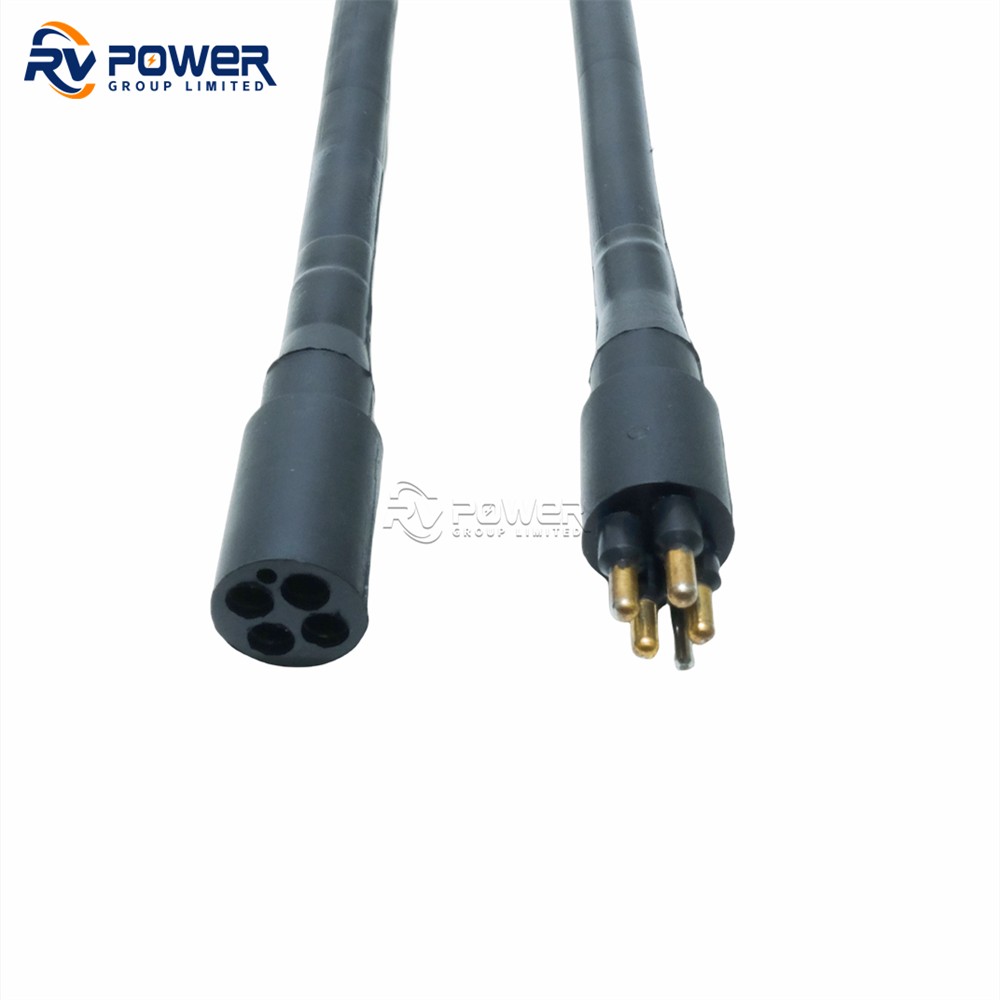

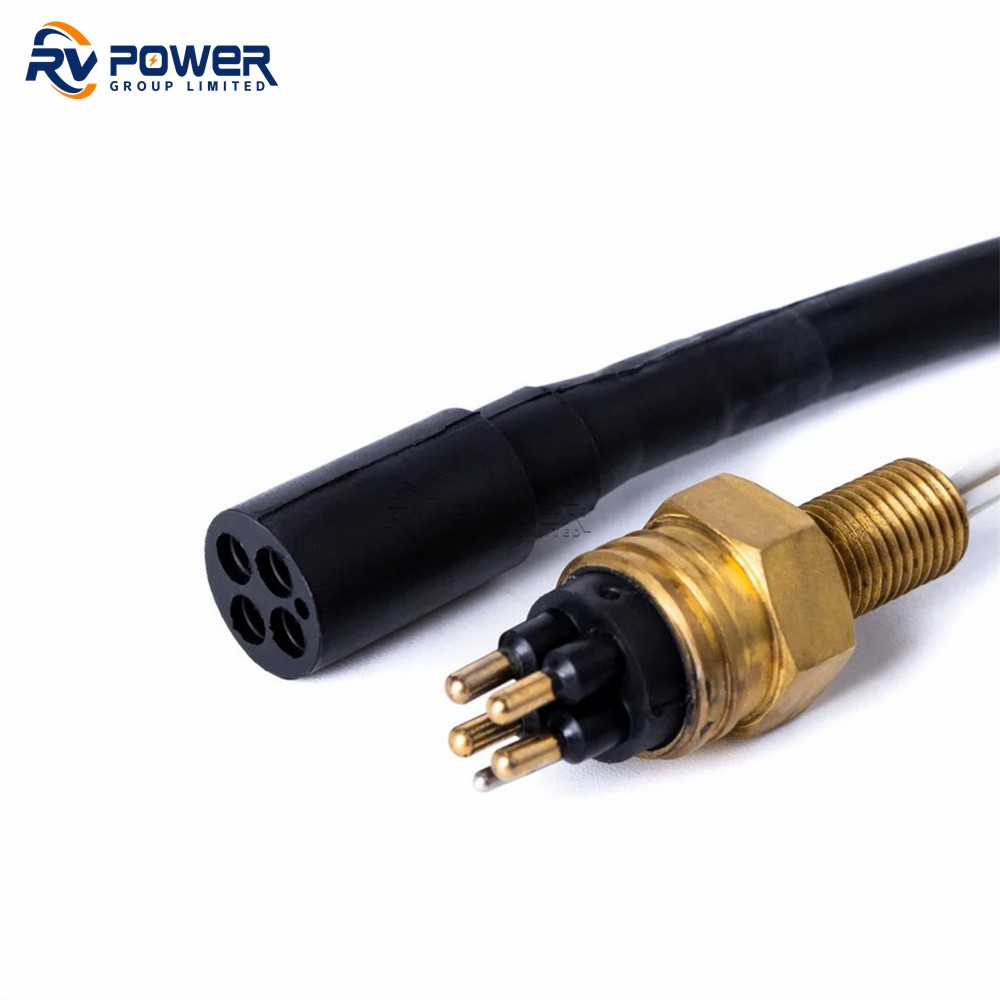

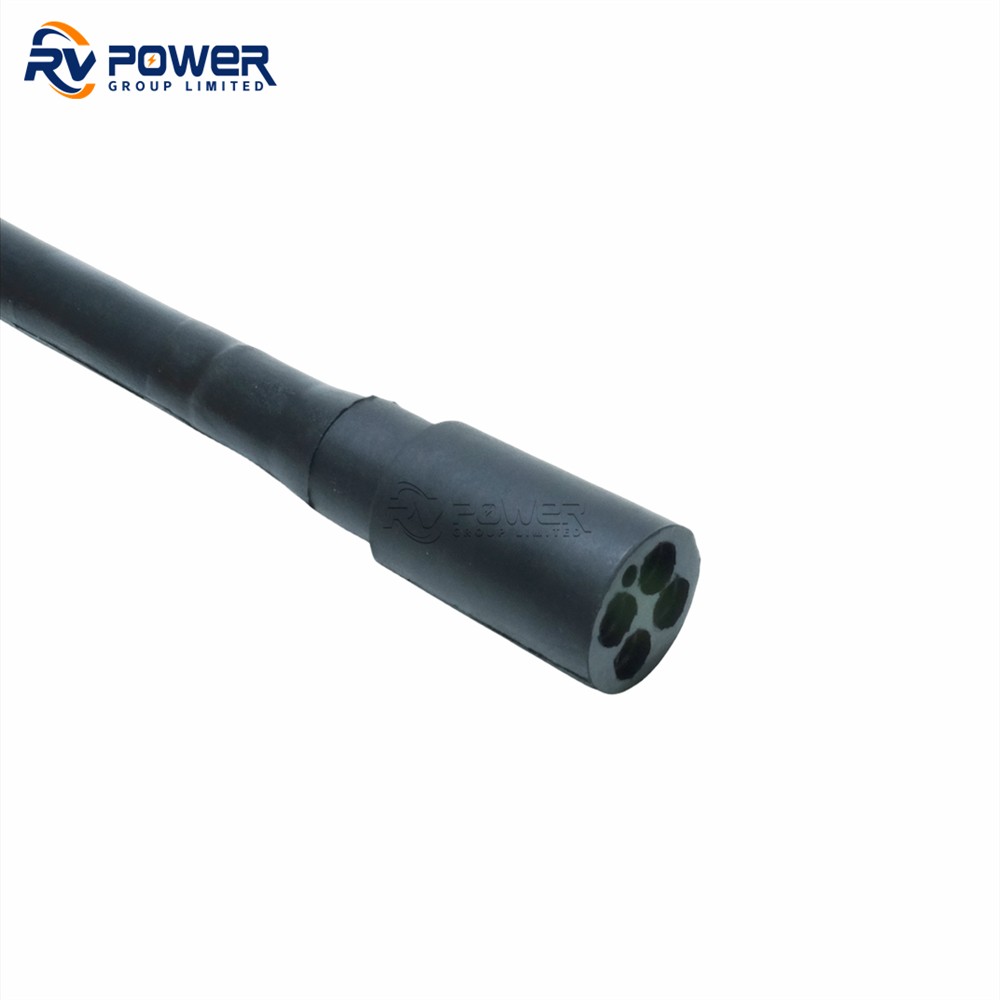

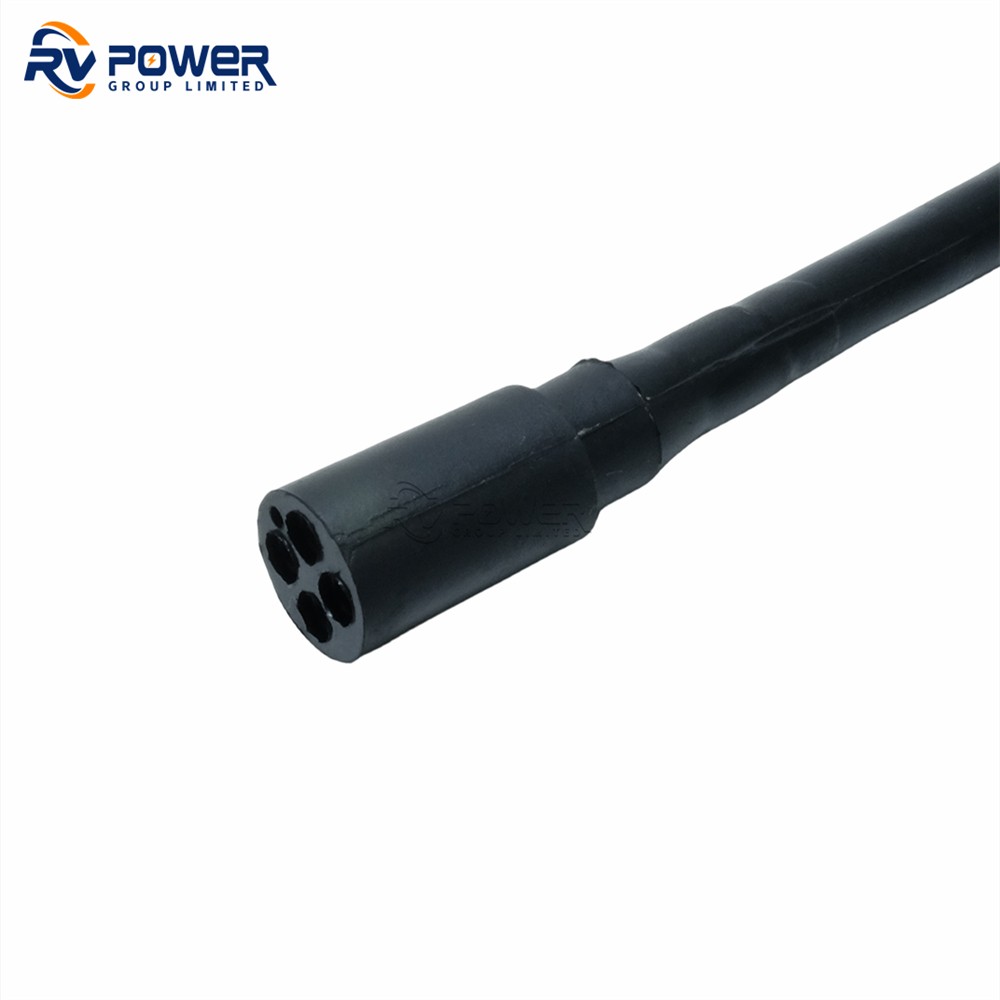

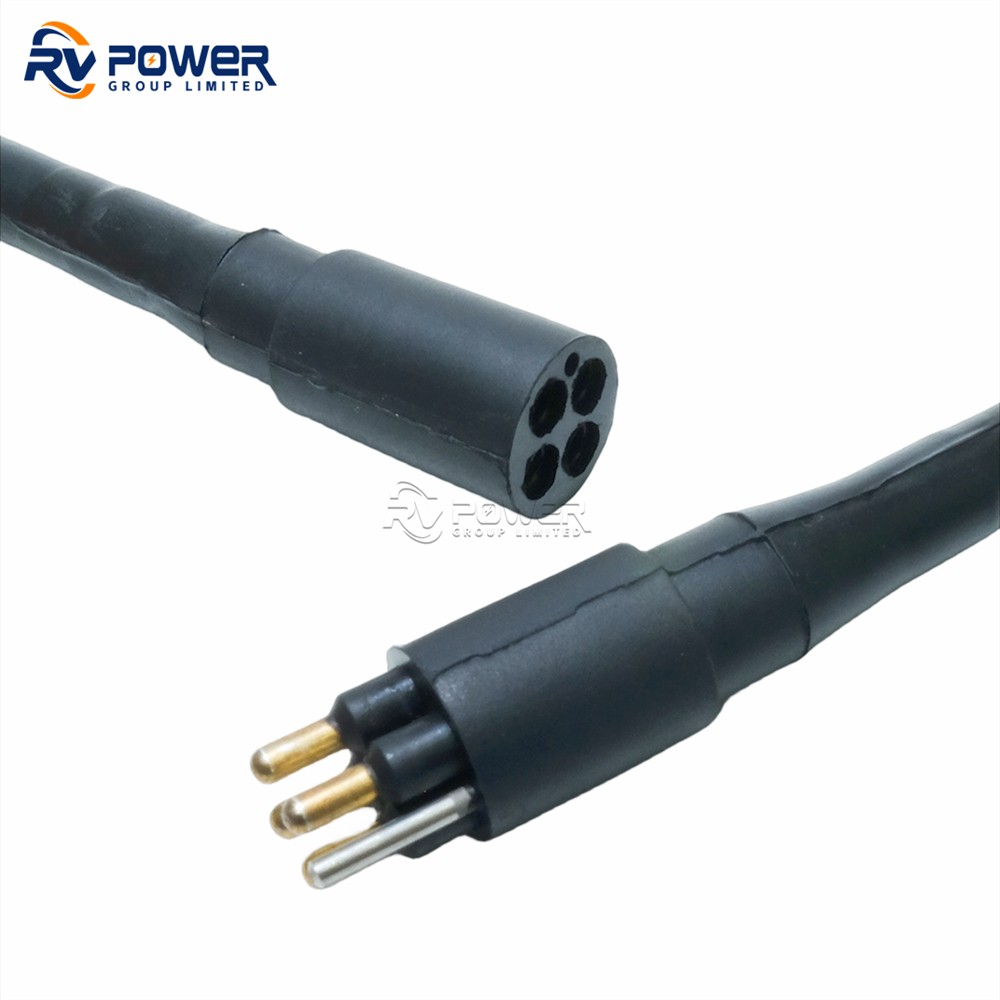

MCIL4F, Micro Wet-Con Inline Connector – Female 4 Sockets Specifications: Molded Body: Neoprene Contacts: Brass-Gold Plated In-Line Cable: 3 Pin: Neoprene #18 AWG (SO Cable) In-Line Cable Length: 3.28 ft (1 m) Open Face Pressure: 10,000 PSI (Approx. 689 Bar) Optional And Needs To Be Specified Dummy Cap Recommended Above 100 PSI Mated Pressure: 10,000 PSI (Approx. 689 Bar) Voltage Rating 3 Pin: 600 VDC Current Rating: 6 Amps Per Contact Insulation Resistance: >200 Megohms @ 300 VDC Contact Resistance: <0.01 Ohms Air Mate: >1,000 Cycles Underwater Mate: >500 Operating Temperature: 25° To 140°F (-4° To 60°C) Mates with: MCIL3M and MCBH3M Dummy Connector Mate: MCDC3M Connector Sockets: 3
