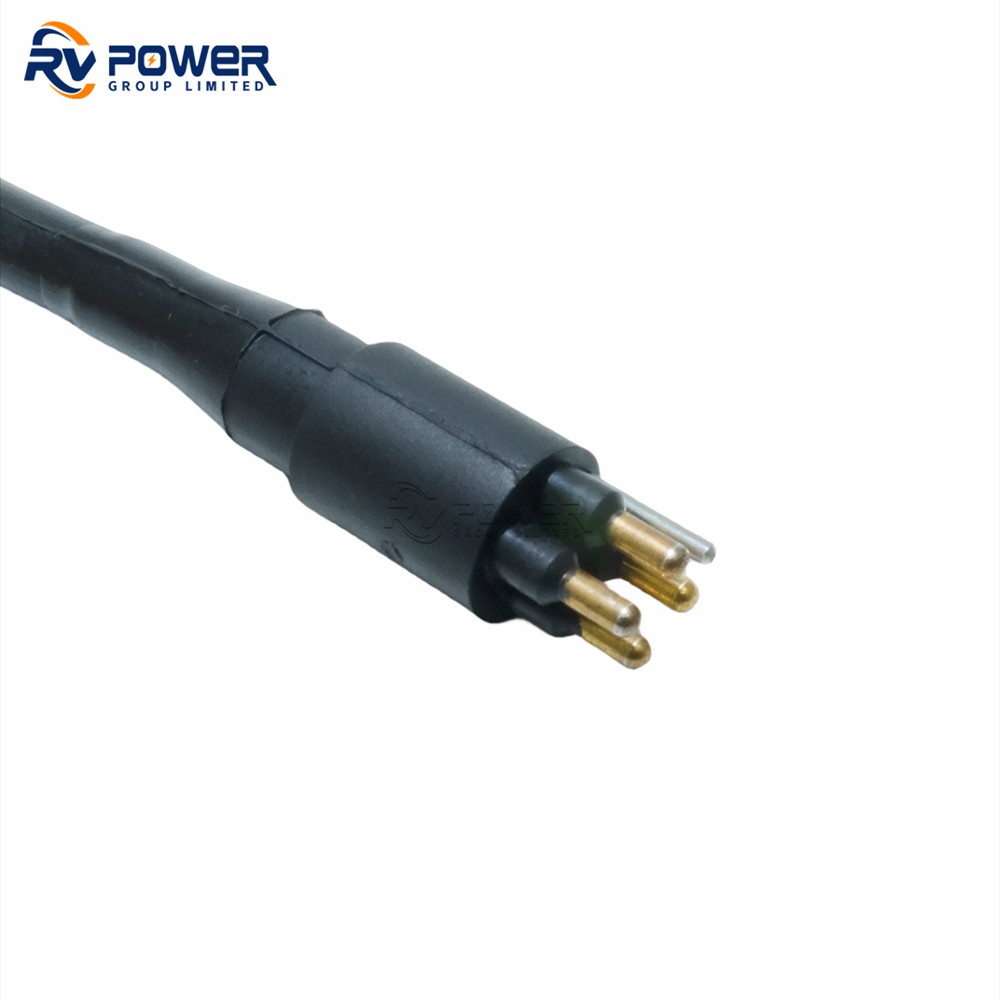

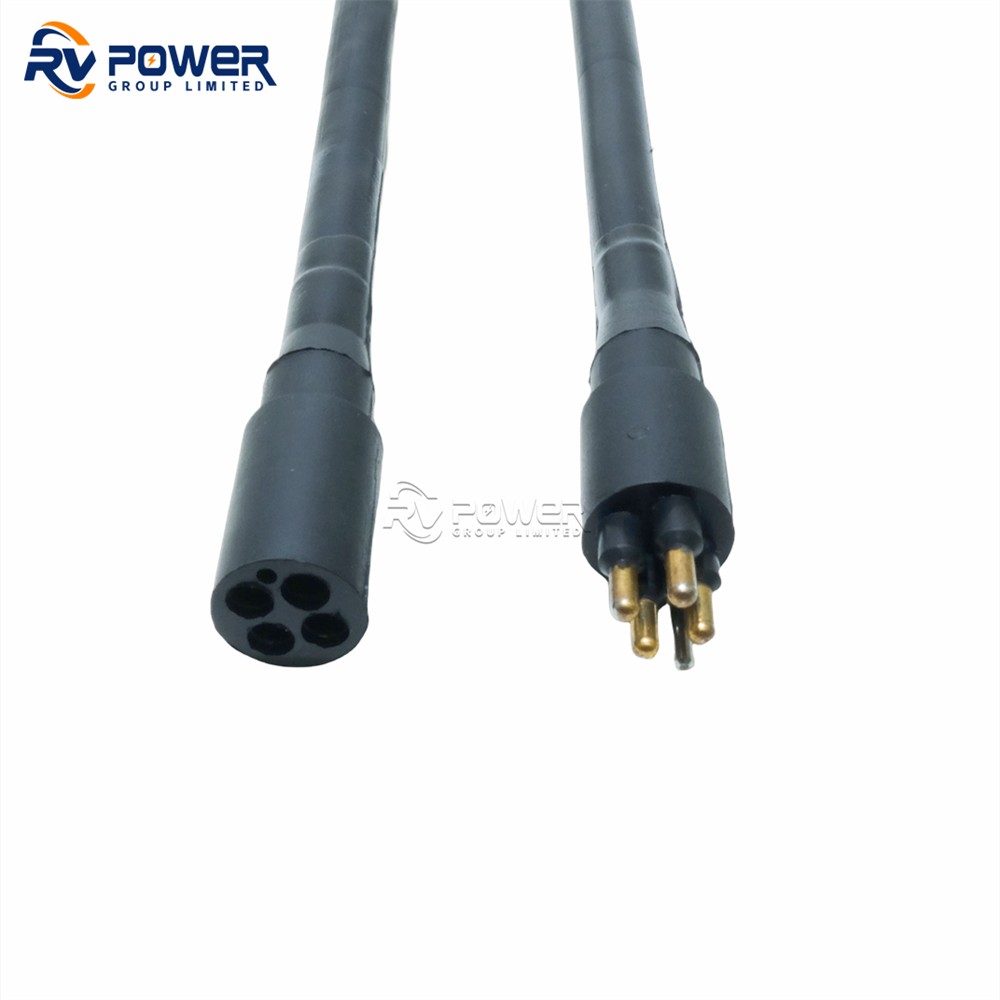

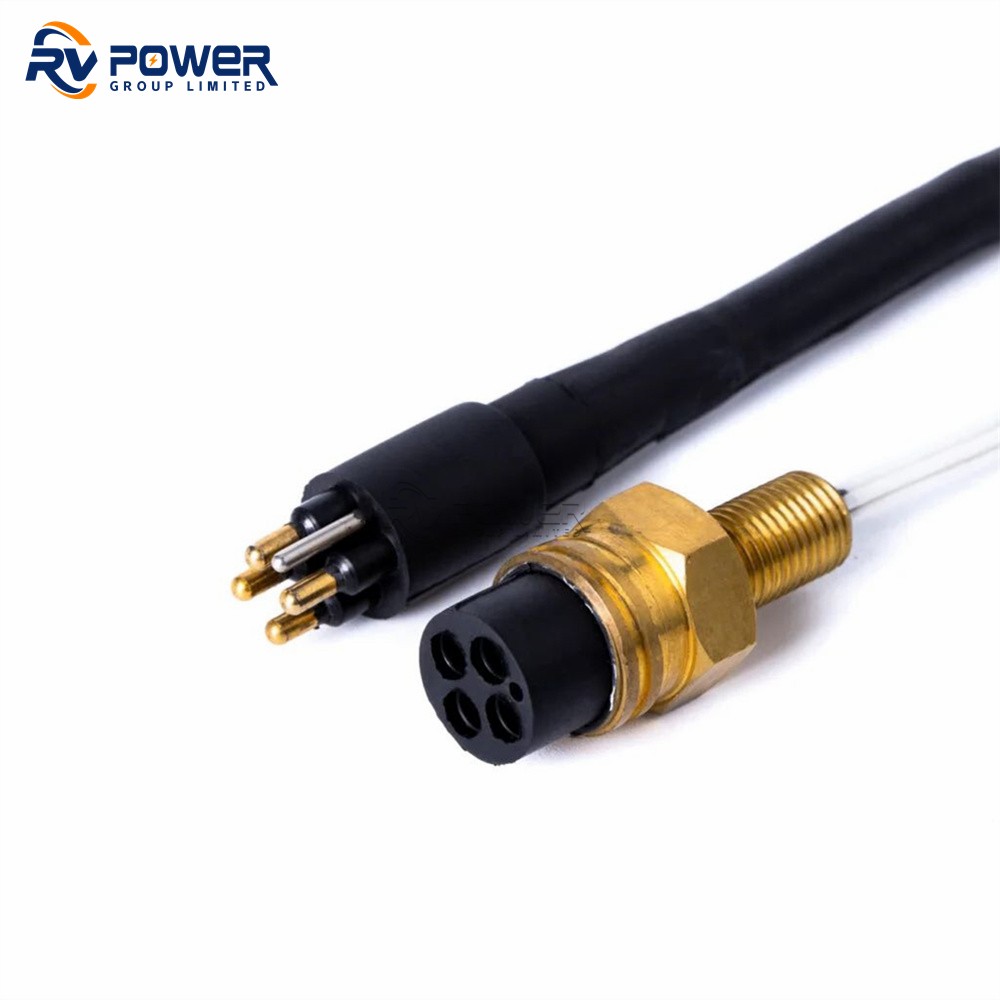

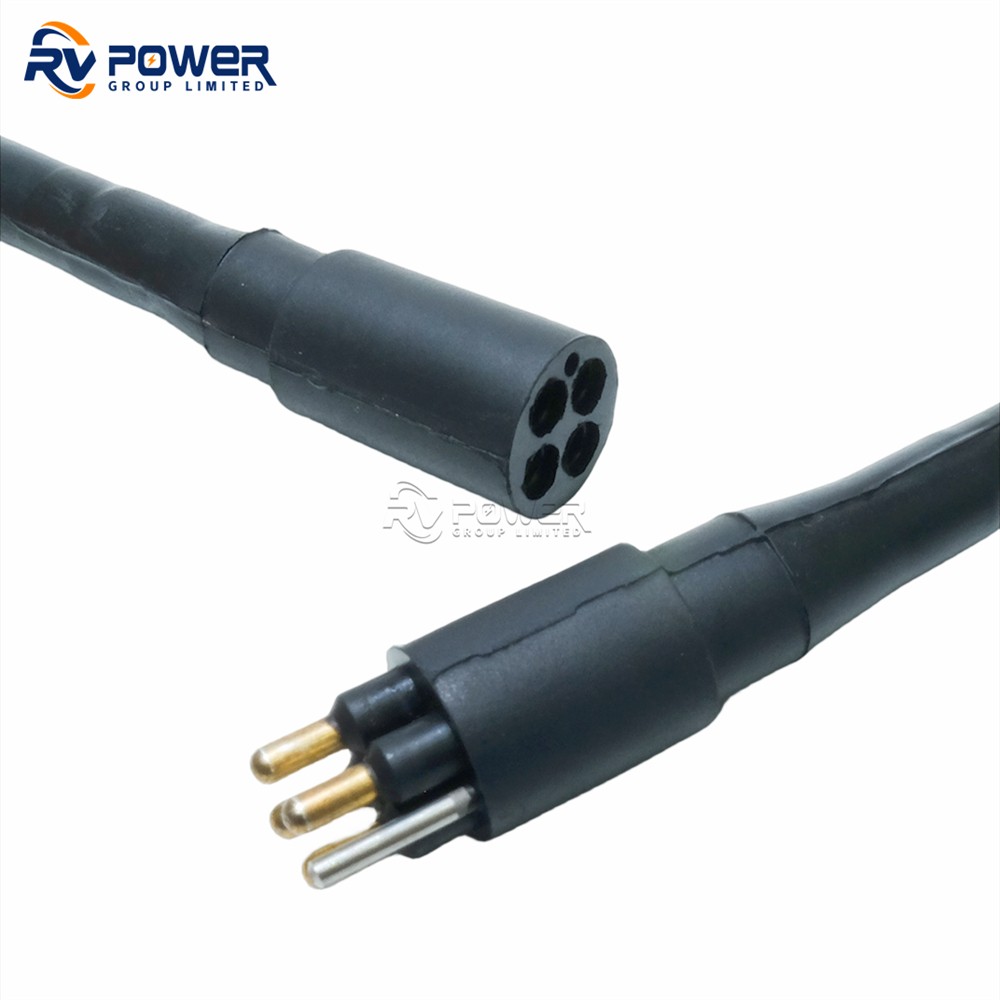

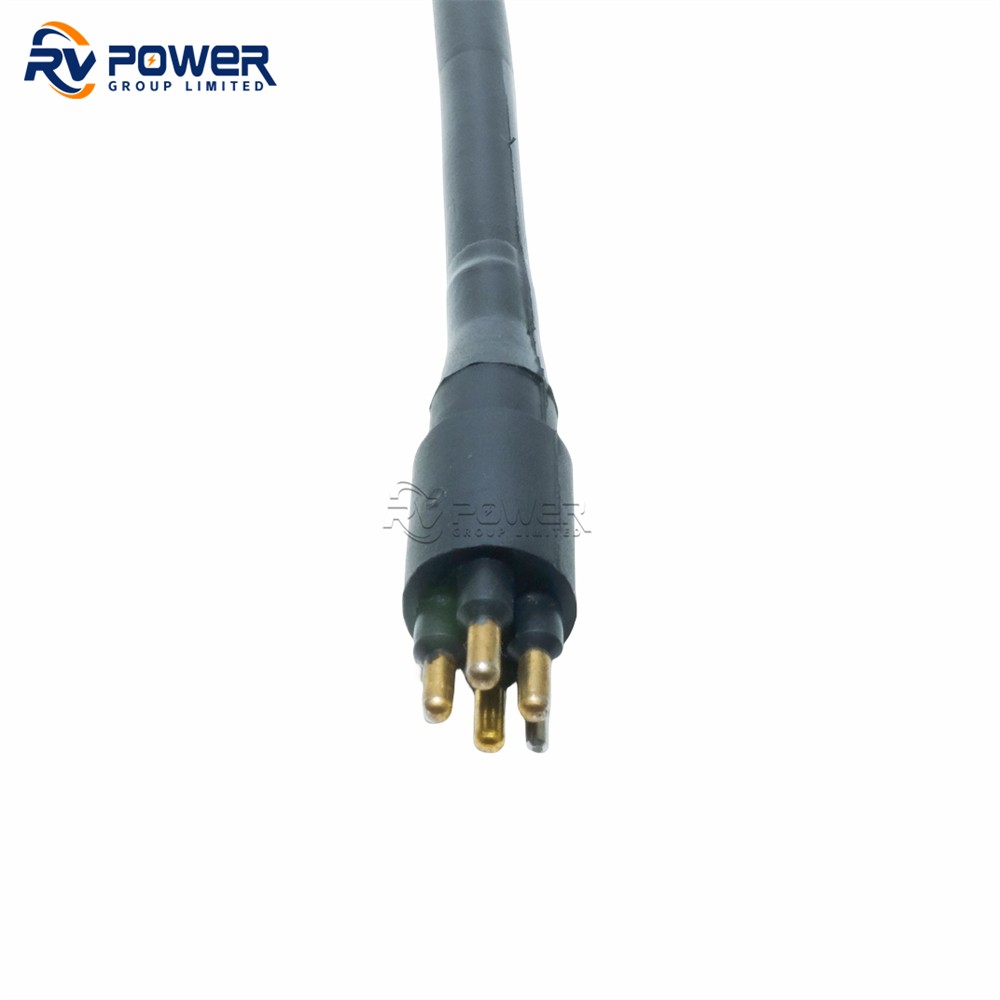

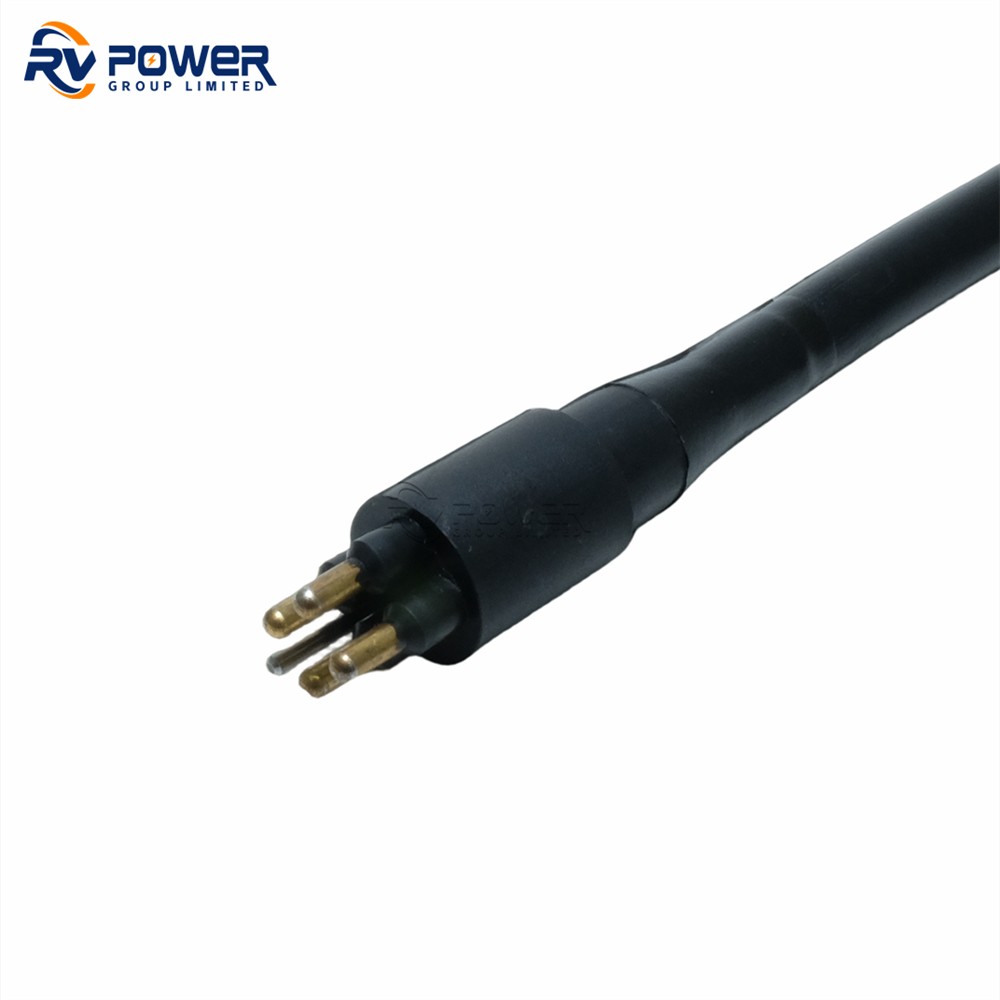

MCIL4M, Micro Wet-Con Inline Connector – male 4 PIN Specifications: Molded Body: Neoprene Contacts: Brass-Gold Plated Guide Pins: Stainless Steel In-Line Cable: 4 Pin: Neoprene #18 AWG (SO Cable) In-Line Cable Length: 3.28 ft (1 m) Open Face Pressure: 10,000 PSI (Approx. 689 Bar) Optional And Needs To Be Specified Dummy Cap Recommended Above 100 PSI Mated Pressure: 10,000 PSI (Approx. 689 Bar) Voltage Rating 4 Pin: 600 VDC Current Rating: 6 Amps Per Contact Insulation Resistance: >200 Megohms @ 300 VDC Contact Resistance: <0.01 Ohms Air Mate: >1,000 Cycles Underwater Mate: >500 Operating Temperature: 25° To 140°F (-4° To 60°C) Mates with: MCIL4F and MCBH4F Dummy Connector Mate: MCDC4F Locking Sleeve: MCDLS-M (male); MCDLS-F (female) Connector Pin: 4
