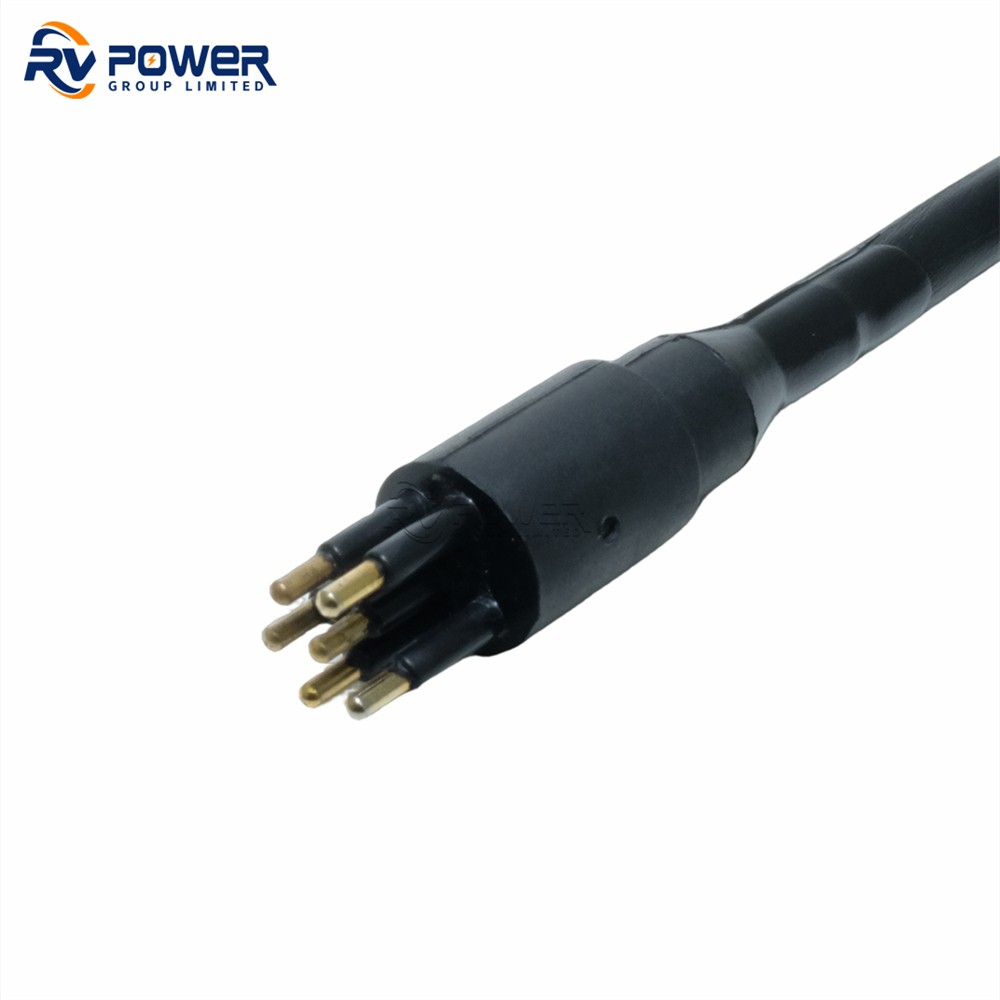

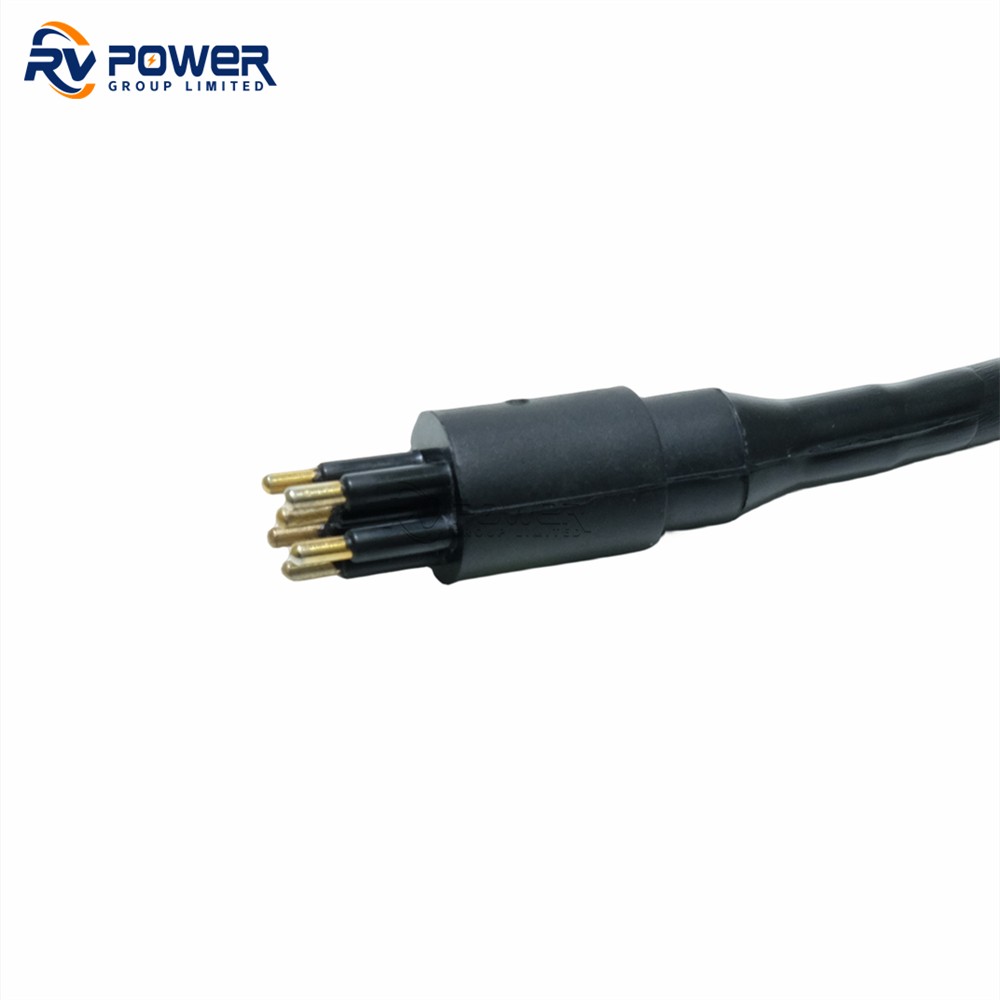

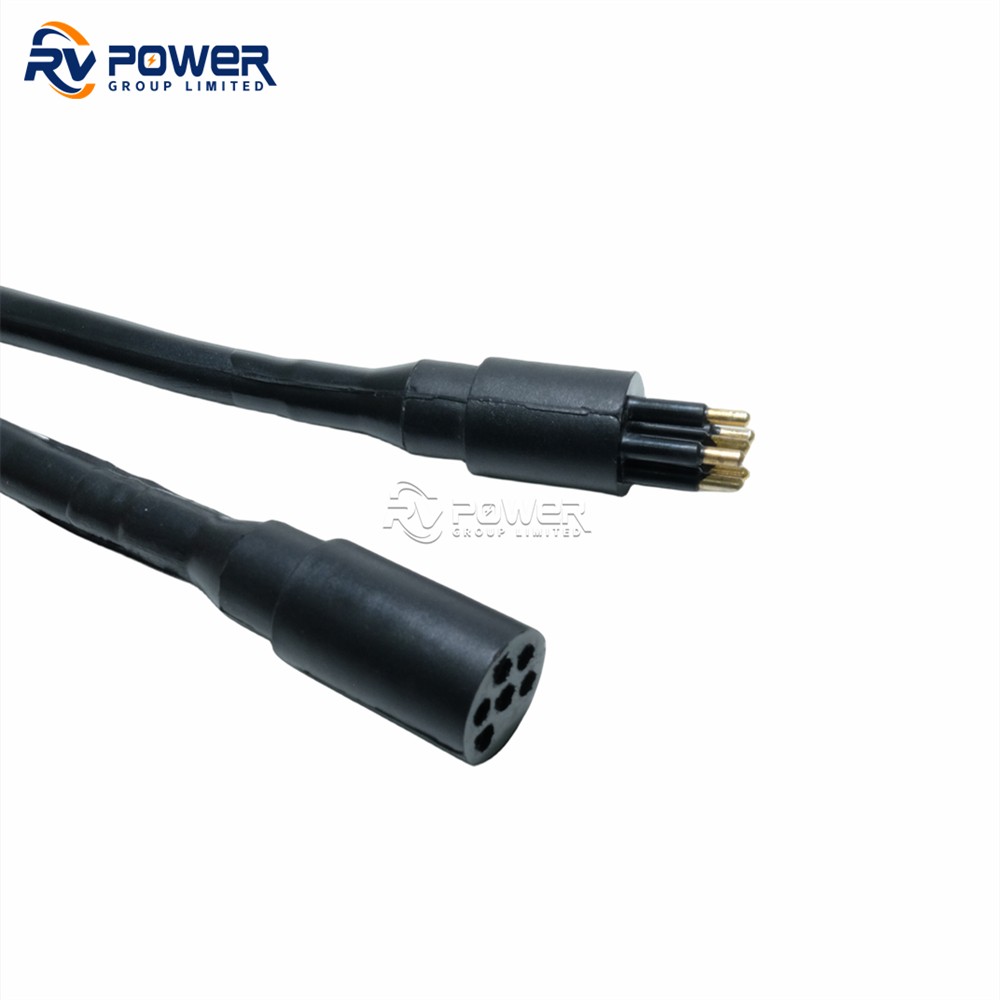

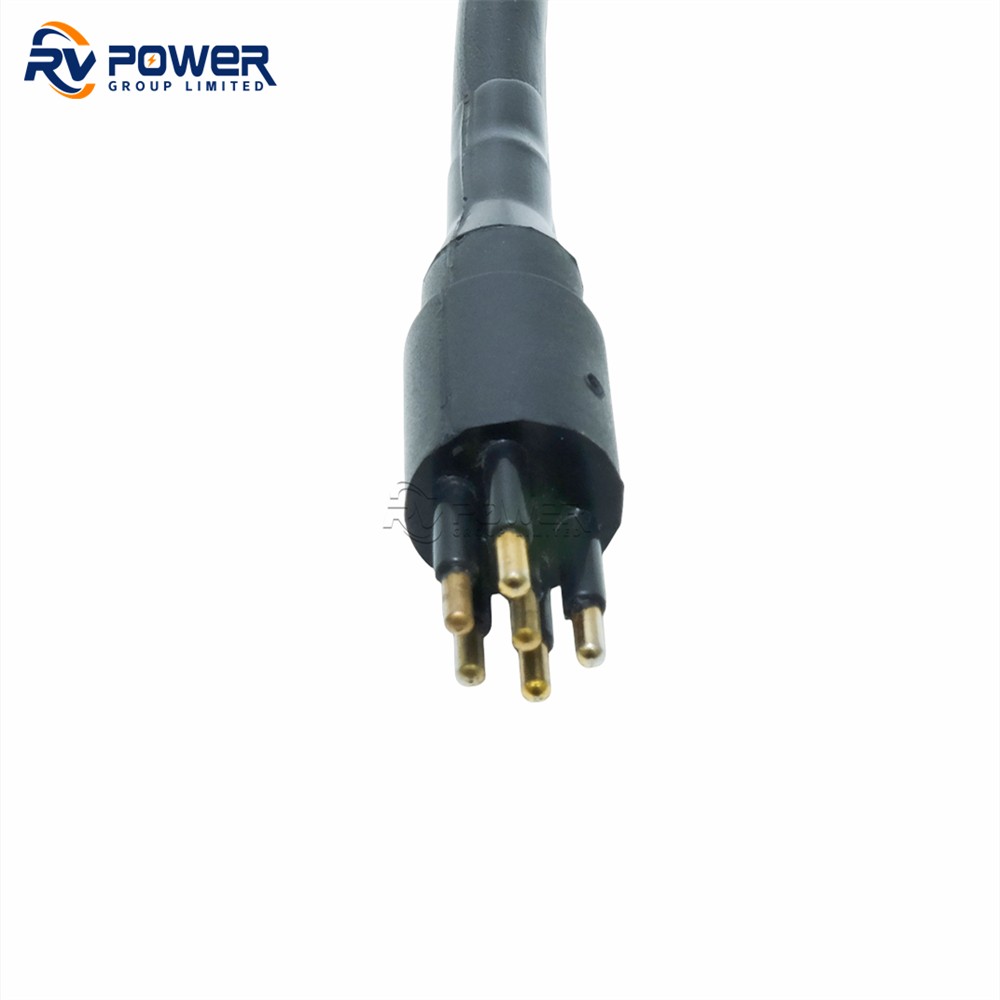

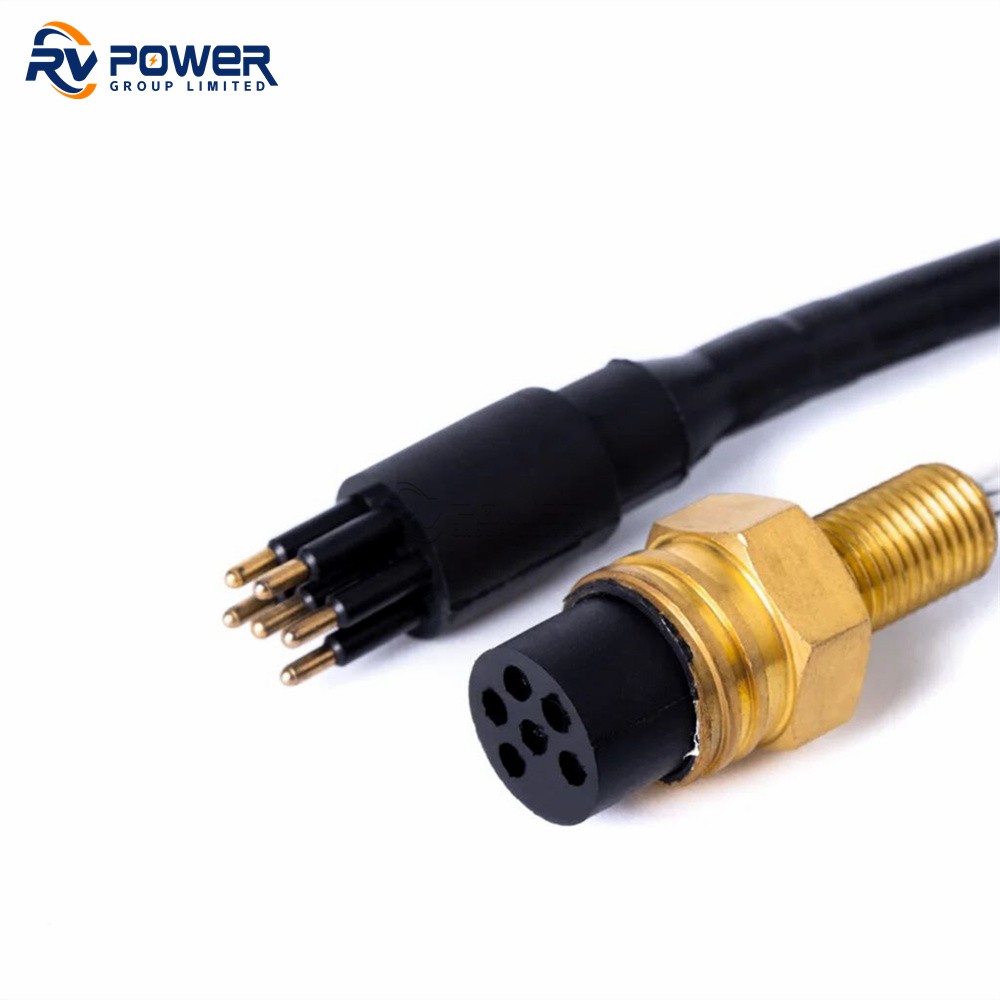

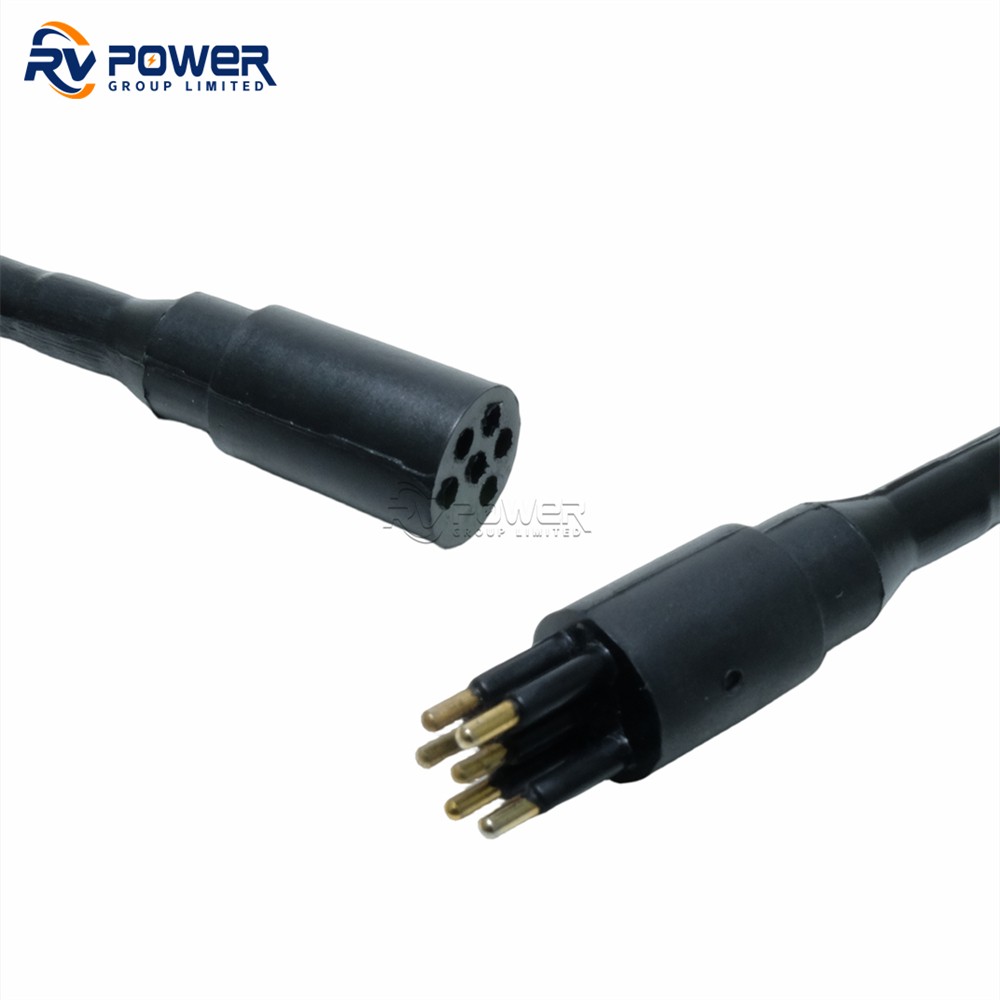

Micro In-Line Connector - 6 Pin Male MCIL6M Specifications: Molded Body: Neoprene Bulkhead Body: Brass Contacts: Brass-gold plated Guide Pins: Stainless steel In-Line Cable 6 Pin: Neoprene #20 AWG In-Line Cable Length: 3.28 ft. (1 m) Open Face Pressure: 10,000 psi (Approx. 689 bar) *Optional and needs to be specified dummy cap recommended above 100 psi. Mated Pressure: 10,000 psi (Approx. 689 bar) Voltage Rating 6 Pin: 300 VDC Current Rating: 3 amps per contact Insulation Resistance: >200 megohms @ 300 VDC Contact Resistance: <0.01 ohms Air Mate: >1,000 cycles Underwater Mate: >500 Operating Temperature: 25° to 140°F (-4° to 60°C) Mates with: MCIL6F and MCBH6F Dummy Connector Mate: MCDC6F Connector Pin: 6
