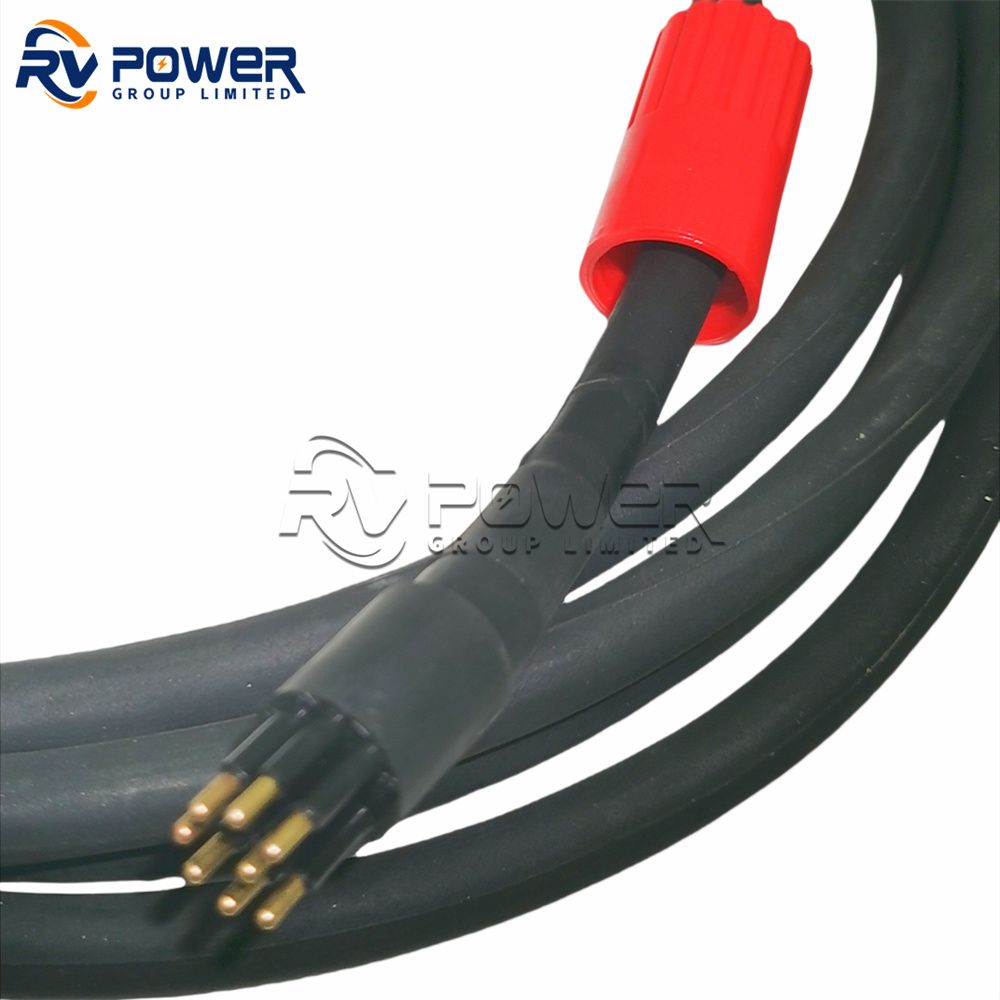

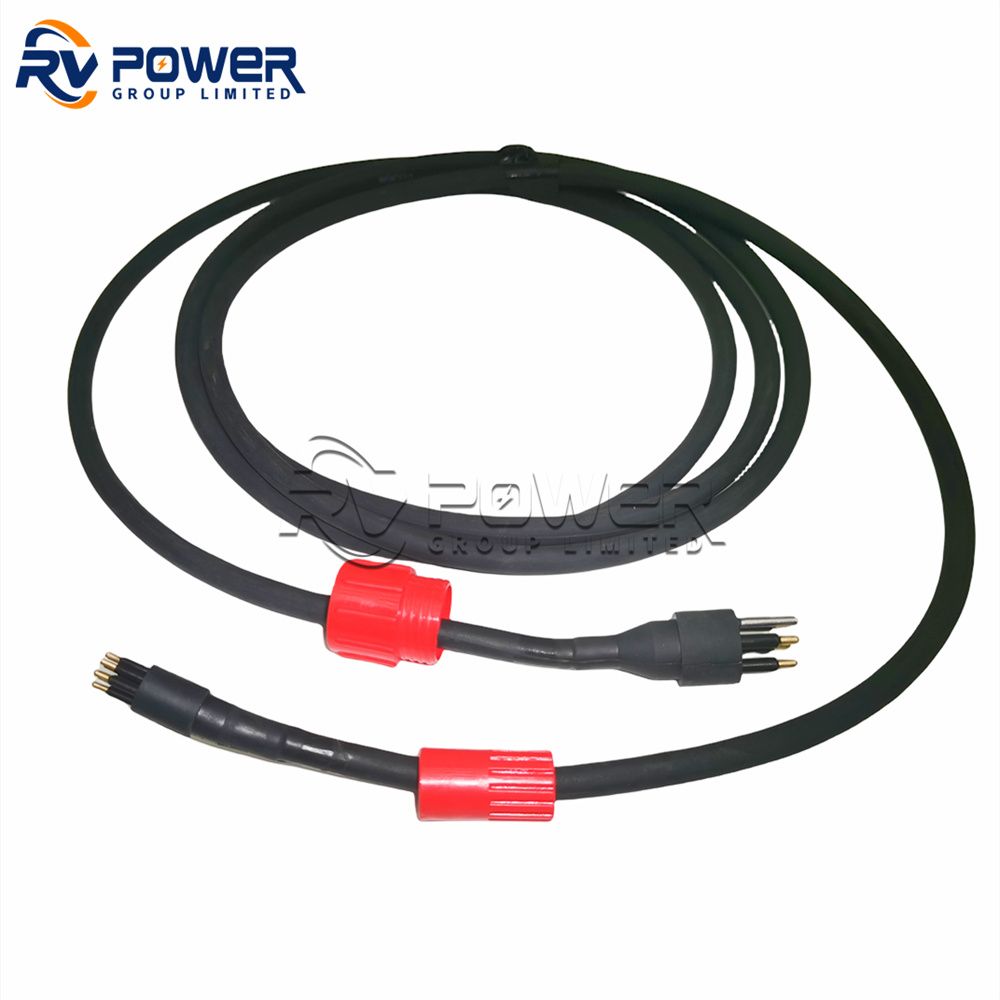

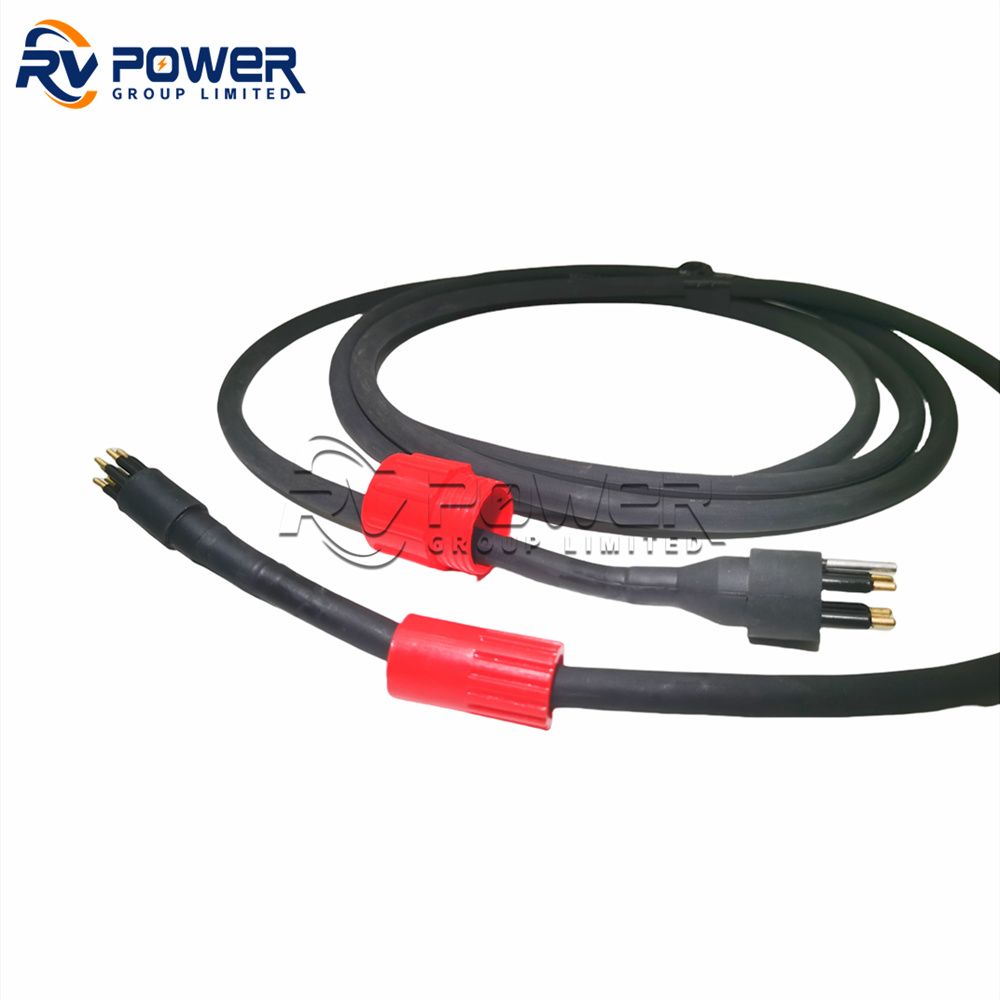

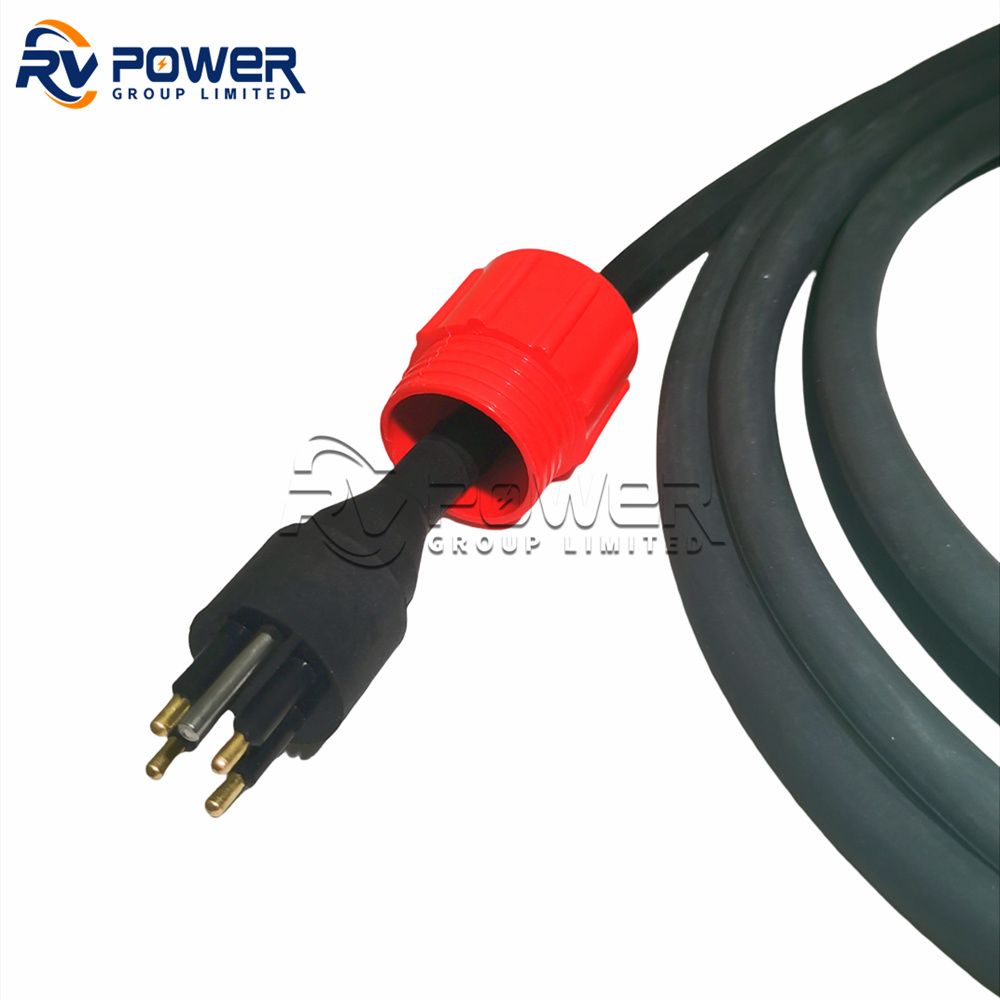

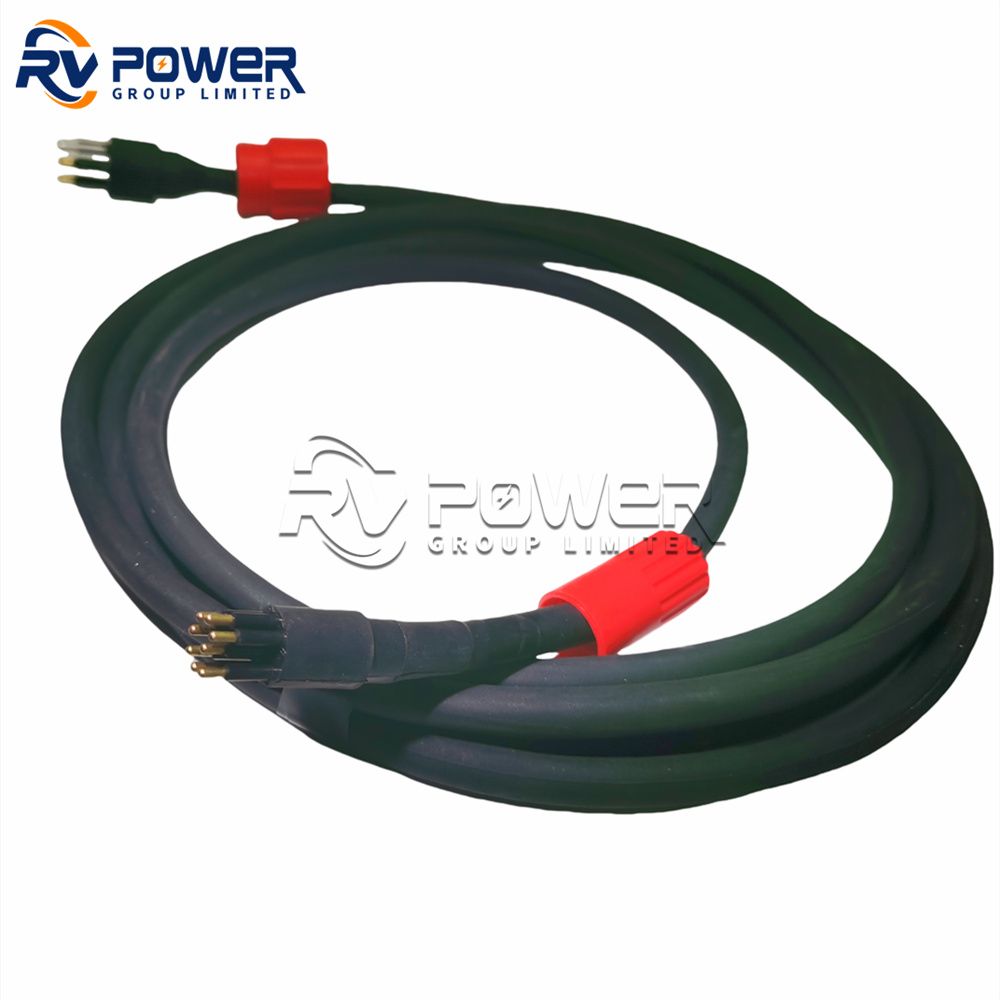

IL4M-MCIL8M — Custom Subsea Cable Assembly

This custom subsea cable assembly integrates Micro Circular series connectors with precision-terminated cable to deliver a ready-to-install subsea harness. Each assembly is factory-built, pressure-tested, and continuity-verified before shipment — eliminating field termination risk and reducing underwater vehicle or instrument integration time.

Custom cable assemblies are available in any combination of Micro Circular connector types (MCBH, MCIL, MCOM), pin counts (1–21 contacts), genders, cable lengths, and jacket materials. The assembly is designed to match the depth rating of the highest-rated connector in the harness — up to 1,400 Bar (20,300 psi) when mated.

Custom Cable Assembly Micro Circular Series Factory Tested 300V AC/DC Up to 1,400 Bar

Key Assembly Features

  • Factory-terminated and tested — continuity and insulation resistance verified before shipment; no field termination risk
  • Custom configuration — any combination of MCBH, MCIL, MCOM connector types, pin counts, genders, and cable lengths
  • Depth-rated to 1,400 Bar (mated) — assembly rated to match the connector depth specifications
  • 300V / 5–10A per contact — suitable for combined power and signal circuit harnesses
  • Pressure-balanced and strain-relieved — cable jacket and overmould construction eliminates pull-out failure modes
  • Reduced integration time — plug-and-play installation directly into ROV, AUV, or instrument harness
  • Traceable documentation — test records, wiring diagrams (GA), and material certificates available on request
  • Short lead times — standard assemblies available within 1–3 weeks

Typical Applications

  • ROV inter-module and tool sled cable harnesses requiring factory-tested multi-connector assemblies
  • AUV payload bay harnesses connecting multiple sensors and actuators with a single pre-built cable set
  • Cabled observatory sensor-to-node connection assemblies with custom lengths
  • Subsea instrument integration harnesses for research vessel deployments
  • Mooring system power and communication cable assemblies
  • Replacement or spare harnesses for subsea production and inspection systems
